Z.P.H. JAN - Wire products; fencing systems

Panel fencing

Panel fencing

We provide an end to end fencing systems made of welded and embossed or plain panels, complete with mounting posts and suitable installation accessories.

The fencing panels are available in the hot dip zinc finish or the powder coated galvanised finish. We also manufacture gates and wickets on custom order. Our gates are available with swing leafs or sliding leafs.

Application: fencing of industrial facilities, warehouses, public buildings and facilities (schools, sports fields and stadiums, playgrounds, etc.), as well as private residential premises.

We also provide fencing installation services.

See the images of our completed projects in the gallery below:

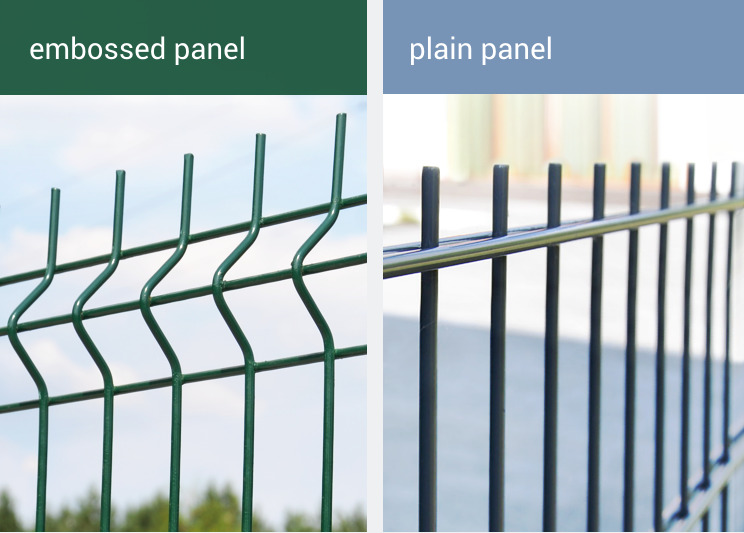

Embossed panel fencing
Plain panel fencing

Sizing tables

Embossed panels
Embossed panels, mesh size 60×200
height [mm] width [mm] wire diaameter [mm] embossing posts clamps
ø48 mm 60×40 mm
1000 2500 ø3,5 2V H - 1,5m 2 set
1200 2500 ø3,5 2V H - 2m 2 set
1500 2500 ø3,5 3V H - 2m 3 set
1700 2500 ø3,5 3V H - 2,4m 3 set
2000 2500 ø3,5 4V H - 2,6m 4 set
Embossed panels, mesh size 50×200
height [mm] width [mm] wire diaameter [mm] embossing posts clamps
ø48 mm 60×40 mm
1000 2500 ø4,0
ø5,0
2V H - 1,5m 2 set
1200 2500 ø4,0
ø5,0
2V H - 2m 2 set
1500 2500 ø4,0
ø5,0
3V H - 2m 3 set
1700 2500 ø4,0
ø5,0
3V H - 2,4m 3 set
2000 2500 ø4,0
ø5,0
4V H - 2,6m 4 set
Embossed panels, mesh size 75×200
height [mm] width [mm] wire diaameter [mm] embossing posts clamps
ø48 mm 60×40 mm
1000 2500 ø4,0 2V H - 1,5m 2 set
1200 2500 ø4,0 2V H - 2m 2 set
1500 2500 ø4,0 3V H - 2m 3 set
1700 2500 ø4,0 3V H - 2,4m 3 set
2000 2500 ø4,0 4V H - 2,6m 4 set
Plain panel
Plain panels, mesh size 50×200
height [mm] width [mm] wire diaameter [mm] posts clamps
ø48 mm 60×40 mm
1000 2500 ø6,0+ø5+ø6
ø8,0+ø6+ø8
H - 1,5m 2 set
1200 2500 ø6,0+ø5+ø6
ø8,0+ø6+ø8
H - 2m 2 set
1400 2500 ø6,0+ø5+ø6
ø8,0+ø6+ø8
H - 2m 3 set
1600 2500 ø6,0+ø5+ø6
ø8,0+ø6+ø8
H - 2,2m 3 set
1800 2500 ø6,0+ø5+ø6
ø8,0+ø6+ø8
H - 2,4m 4 set
2000 2500 ø6,0+ø5+ø6
ø8,0+ø6+ø8
H - 2,6m 4 set

We can also produce fencing panels in other sizes on custom order.

Accessories

Gates and wickets

We provide wickets and driveway gates in double leaf and sliding versions and with infills made of section bars or mesh panels, with the maximum gate sizes of H = 3 m and L = 18 m, finished by hot dip zinc coating or galvanizing and powder coating.
We can manufacture any type of gate with various forms and infill types on custom order.

Gates and wickets

Production and colours

Our mesh panels are made of bare or colour powder coated galvanised steel wires.
Powder coating provides maximum protection against weather and corrosion.
The paint coating process used at ZPH JAN is done by depositing powder coats and holding them to cure at high temperature. The process dissolves the pigment and results in the uniform colour coating of the mesh panel. The process is environmentally friendly.

The fence posts are galvanised and powder coated in colours. The available post sections are tubular or square. Each post comes with a PVC top cap to protect the interior from water.

The standard powder coating colour is RAL 6005 Green. Other colours are available on order.

  • RAL 6005 green
  • RAL 8017 brown
  • RAL 7016 graphite
  • RAL 9005 black
  • RAL 5015 blue

Zinc coating plant

Hot dip zinc coating is the most effective anti-corrosion protection of steel.
Hot dip zinc coating assures many years of resistance to sunlight and weather conditions.

Installation

We provide professional installation services of our team of specialists available in Poland and abroad.

See the images of our completed projects below:

Plain panel fencing Embossed panel fencing
